Wedges

Sabots 011

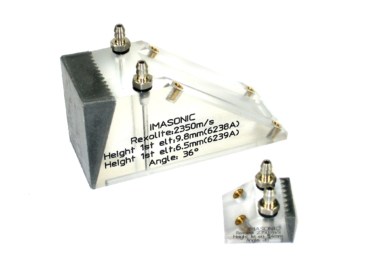

Imasonic offers a wide variety of wedges for contact probes, fully adaptable to transducers and their conditions of use.

Main Characteristics

Incidence angle
35-70°SW in steel / 0-70° LW in steel / 0° (Delay line)
Material
Rexolite or Plexiglas
Transducer attachment
2 to 4 threaded metal inserts
Anti reverberation system
yes

This table mentions typical indicatives values, which can be changed on request

Options

Interface with probe holder
One hole on each lateral side on the wedge.
Water system
One hole on each lateral side on the wedge.Two water inlets connected to a groove on the contact face
Wearing pads
4 carbide inserts on the connect face to prevent excessive wear on wedge

This table mentions typical indicatives values, which can be changed on request

Plexiglas or Rexolite ?

These two materials are the most commonly used for ultrasonic probe wedges.
Rexolite is a very interesting material with low attenuation and low sound velocity of 2350 m/s. It is thus well adapted for reduced-size wedges, allowing smaller angle, and for high frequency probes (7.5 MHz and more), thanks to low attenuation combined with shorter acoutic path.
Plexiglas is more resistant to abrasion.
